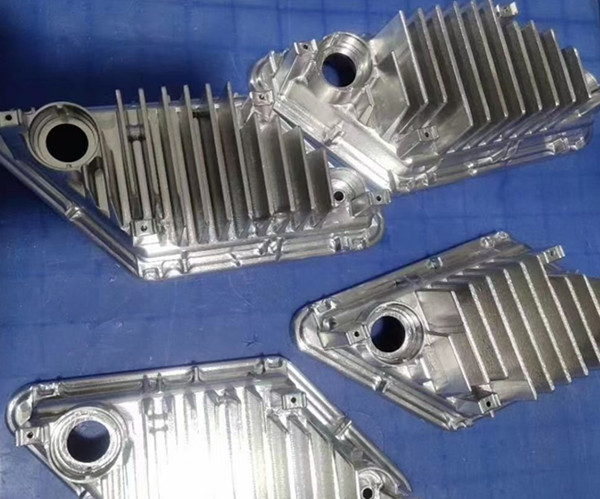

Precision Custom Heatsink Parts
Solving Thermal Challenges in High-Stakes Industries
Traditional mass-production methods like die-casting or extrusion are ill-suited for custom heatsink requirements, often causing:
- 14–20-week delays for complex geometries (e.g., micro-fins <0.2mm)
- $25k+ mold costs for prototypes or small batches (<300 units)
- ±0.3mm tolerance gaps leading to thermal interface failures
- 1,000-unit MOQs forcing wasteful overproduction
Our Custom Heatsink Parts service eliminates these bottlenecks through adaptive manufacturing strategies, combining AI-driven process selection and zero-tooling digital fabrication to deliver:
- 5–10 business day lead times (80% faster than extrusion)
- 65% cost reduction for batches of 1–500 units
- Tolerances down to ±0.02mm for mission-critical applications
Critical Applications & Technical Innovations
1. Electric Vehicle Power Electronics
- Challenge: EV inverter heatsinks require copper microchannels (0.4mm width) but face 16-week delays via etching ($520/unit).
- Our Solution:
- CNC skiving + micro-EDM achieves 15:1 fin aspect ratios
- Thermal resistance: 0.03°C-in²/W @ 400W load
- 8-day delivery for low-volume copper heatsinks for EV inverters
- ✅ Integrated Keyword: "Low-volume copper heatsinks for EV inverters"
2. High-Performance Computing
- Pain Point: GPU server heatsinks with vapor chambers face 22-week delays and $38k tooling fees.
- Breakthrough:
- Additive manufacturing (DMLS) builds conformal channels in 6 days
- 30% weight reduction vs. stamped designs
- $124/unit for 50pcs of microchannel heatsink machining for data center GPUs
- ✅ Integrated Keyword: "Microchannel heatsink machining for data center GPUs"
3. Aerospace & Defense Systems
- Hurdle: Radar cooling modules needing EMI shielding and 0.05mm flatness require 26-week certifications.
- Precision Engineering:
- CNC bonding + chemical etching for bimetallic (Al-Cu) assemblies
- MIL-STD-461G EMI compliance
- 12-day certified delivery for custom bonded-fin heatsinks for military radar
- ✅ Integrated Keyword: "Custom bonded-fin heatsinks for military radar"
Adaptive Manufacturing Process Matrix
| Design Requirement | Optimal Process | Capabilities |
|---|---|---|
| Ultra-thin fins (<0.15mm) | Laser skiving | Ra 0.8µm finish, ±0.01mm repeatability |
| 3D curved micro-pin arrays | 5-axis micromilling | 50µm tool diameter, 20k RPM spindle |
| Hybrid metal assemblies | Diffusion bonding + CNC | Intermetallic layer <2µm thickness |
| Conformal cooling channels | DMLS additive manufacturing | 30µm layer resolution, Inconel support |
Case Study: Accelerating Drone Motor Cooling
A client needed 50 aluminum heatsinks for high-RPM drone motors within 10 days:
- Traditional Approach:
- Extrusion die (18k)+14−weekleadtime→∗∗226/unit**
- Our Custom Solution:
- CNC machining + friction stir welding
- 8-day turnaround @ $89/unit (60% cost saving)
- Achieved 0.08°C/W thermal resistance in 15g weight
- ✅ Integrated Keyword: "Rapid aluminum heatsink production for drone motors"
