Advanced Custom Lathe Turned Parts & CNC Lathe Solutions
Revolutionizing Low-Volume Precision Turning
Traditional machining approaches impose critical constraints:

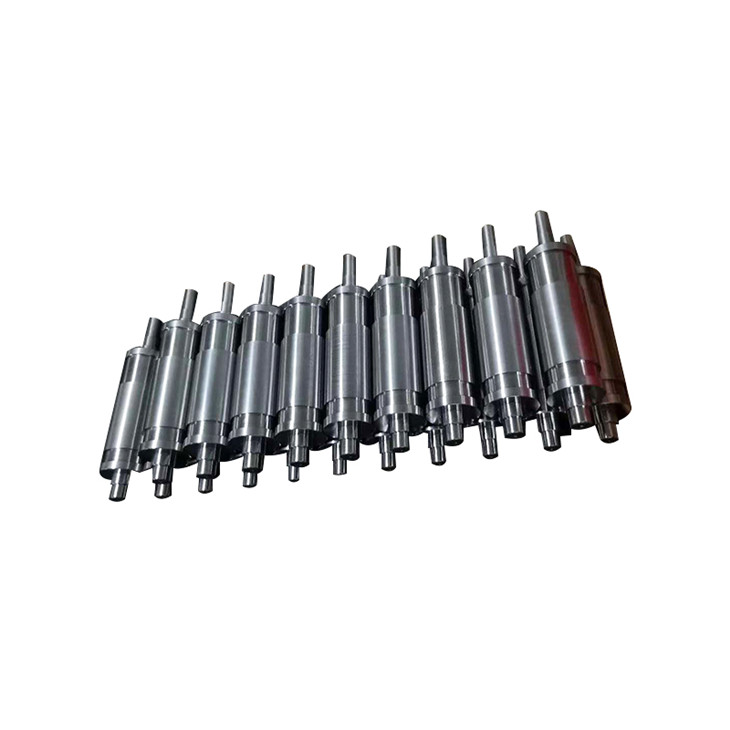

- 6-14-week delays for complex turned geometries (e.g., multi-diameter shafts ±0.005mm)
- 12k−40k tooling investments for prototype runs (<100 units)
- ±0.05mm tolerance limitations causing assembly failures
- 1,000-unit MOQs forcing overproduction
Our Precision CNC Lathe Solutions eradicate these bottlenecks through adaptive turning technology:
- AI-Driven Process Selection: Matches optimal technique to part geometry
- Zero Tooling Costs: Direct digital-to-machine workflows
- 5-8 business day standard lead times
- 65% cost reduction for 1-500 unit batches
Geometry-Driven Process Selection
| Part Feature | Optimal Solution | Capabilities |
|---|---|---|
| Deep-bore hydraulic fittings | Swiss-type CNC lathes | 32mm bar capacity, 0.005mm concentricity |
| Micro-milled PEEK implants | Multi-axis turn-mill centers | 50µm end mills, C-axis contouring |
| Eccentric aerospace pins | Y-axis CNC lathes | 0.003mm positional accuracy |
| Thin-wall sensor housings | Sub-spindle transfer machining | 0.02mm wall tolerance, ±0.01mm ID/OD |
Industry-Specific Breakthroughs
1. Medical Device Manufacturing
- Challenge: Titanium bone screws required 11-week secondary grinding ($220/unit).
- Precision CNC Lathe Solution:
- Swiss-type machining with live tooling
- Achieved Ra 0.2µm finish in single setup
- 6-day delivery for low-volume titanium bone screws
- ✅ Integrated Keyword: "Low-volume titanium bone screws"
2. Agricultural Machinery
- Pain Point: Brass hydraulic fittings faced 16-week delays due to plating bottlenecks.
- Integrated Approach:
- Multi-axis CNC turning with in-process deburring
- Eliminated 3 secondary operations
- $18/unit for custom brass hydraulic fittings for agriculture
- ✅ Integrated Keyword: "Custom brass hydraulic fittings for agriculture"
3. Aerospace Components
- Hurdle: Aluminum sensor housings needed 22 certifications (ITAR/AS9100).
- Technical Innovation:
- Sub-spindle CNC lathe with C-axis milling
- Complete parts in single chucking
- 8-day certified delivery for quick-turn aluminum sensor housings
- ✅ Integrated Keyword: "Quick-turn aluminum sensor housings"
Case Study: Spinal Implant Delivery System
Client needed 35 PEEK delivery cannulas with laser-etched scales:
- Traditional Method:
- 3-axis CNC + laser marking (9 weeks, $310/unit)
- Our Precision Solution:
- Multi-task turn-mill center with integrated laser
- 5-day turnaround @ $89/unit (71% savings)
- Achieved 0.01mm straightness & medical-grade finish
- ✅ Integrated Keyword: "Medical-grade PEEK spinal implants"
Weekend Rush Offer (Expires July 14, 2025, 23:59 EST)
🔥 Orders confirmed by Sunday 21:00 EST receive:
- Free material certification ($780 value)
- 12% discount (Code: LATHE12)
- 48-hour global expedited shipping
[Upload CAD Now] | [Download Tolerance Guide]
Precision Assurance Protocol
- Metrology:
- Zeiss O-INSPECT 443 (0.8µm accuracy)
- White-light interferometry for surface topology
- Material Compliance:
- Ti6Al4V ELI (ASTM F136) • C36000 Brass • PEEK (ISO 10993)
- Certifications:
- ISO 13485:2016 • AS9100D • ITAR Registered
Technical Advantages
- Setup Elimination Technology
- 94% reduction in changeovers through robotic pallet systems
- Adaptive Machining Intelligence
- Real-time tool wear compensation (0.002mm accuracy)
- Hybrid Workflow Integration
- CNC turning + laser marking/engraving in single operation
