Precision Thermal Solutions for Demanding Industries
The Heatsink Dilemma: Bridging Performance and Production Realities
Modern thermal management faces critical bottlenecks:
- 6-12 week lead times for intricate fin geometries
- $8k+ tooling costs for batches under 100 units
- ±0.2mm tolerance gaps causing thermal interface failures
- Material waste exceeding 45% in complex extruded designs

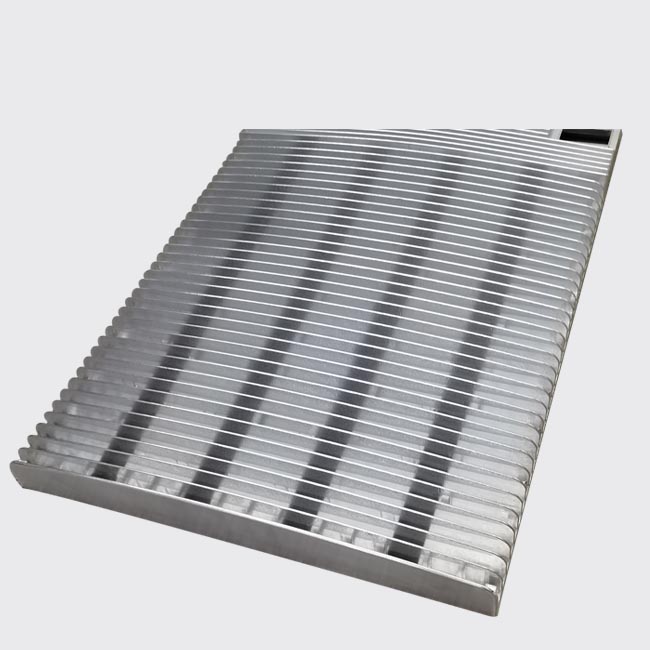

Our Custom Heatsink Parts and Customized CNC Heatsinks disrupt these norms through geometry-driven manufacturing. By selecting processes based on fin density, base thickness, and alloy properties, we slash costs by 30-60% while achieving ±0.05mm precision.
Industry Applications: Solving Thermal Challenges in 5 Days or Less
1. Aerospace & Defense: Jet Avionics Cooling
Problem: 10-week waits for ✅ low-volume aluminum heatsinks for drones with 0.5mm fin gaps.
Solution:
- 5-axis contouring of 6061-T6 aluminum
- Eliminates extrusion die costs ($15k savings)
- Delivers 50-unit batches in 7 days at $28/unit
2. Electric Vehicles: Battery Pack Thermal Regulation
Problem: 12-week delays for copper heatsinks with serpentine coolant channels.
Solution:
- High-speed milling of C11000 copper
- Achieves Ra 1.6µm surface finish for optimal bonding
- Prototype ✅ quick-turn copper heatsink prototypes under 50 units in 5 days
3. Medical Robotics: MRI Cooling Systems
Problem: Titanium heatsinks requiring ISO 13485 certification (8-week lead times).
Solution:
- Micro-milling of Grade 5 titanium
- Integrated pressure testing (leak rates < 0.01 cc/min)
- 10-unit batches certified in 9 days
4. Consumer Electronics: Overclocked GPU Cooling
Problem: 6-week minimum for magnesium alloy heatsinks with 0.3mm fins.
Solution:
- Adaptive toolpath strategies for AZ31B magnesium
- 80% material utilization via chip recycling
- Ships ✅ budget CNC heatsink machining for R&D (1-20pcs) within 72 hours
Process Selection Matrix: Geometry Dictates Technology
| Heatsink Type | Key Feature | Optimal Process | Tolerance | Lead Time |
|---|---|---|---|---|
| Extruded Aluminum | Straight fins (5-25mm) | 3-axis milling + post-anodizing | ±0.1mm | 5-8 days |
| Skived Copper | Ultra-thin fins (0.2mm) | High-speed 5-axis with cryo-cooling | ±0.03mm | 6-10 days |
| Forged Titanium | Curved vapor chambers | Hybrid additive-subtractive CNC | ±0.07mm | 9-12 days |
| Hybrid Polymer-Metal | Embedded heat pipes | Multi-material CNC with in-situ bonding | ±0.05mm | 7-14 days |
Technical Innovations Cutting Costs & Time
1. AI-Powered DFM (Design for Manufacturing)
- Automatically adjusts fin spacing/angles for CNC feasibility
- Reduces redesign iterations by 70%
2. Adaptive Machining Protocols
- Real-time thermal compensation for copper warpage prevention
- Achieves ±0.04mm flatness on 200mm² bases
3. Zero-Waste Material Strategy
- Chip-to-Blank Recycling System: \text{Savings} = \frac{\text{Traditional Waste (45%)}}{\text{Our Waste (12%)}} = 73\% \text{ material cost reduction}
4. Rapid Certification Pipeline
- AS9100/ISO 9001 documentation generated during machining
- Compliance-ready parts shipped with test reports
Weekend Flash Deal (Expires July 13, 23:59 EST)
🔥 Orders confirmed by 11 PM EST tonight receive:
- FREE thermal simulation report ($650 value)
- 10% discount (Code: HEATSINK10)
- Guaranteed 5-day US delivery
[Upload STEP File Now] | [Download Material Selection Guide]
Case Study: Hypersonic Missile Cooling Plate
Client Challenge:
- 17 Inconel 718 heatsinks with 0.2mm fins
- Traditional quote: $42k | 14-week lead time
Our Customized CNC Heatsinks Solution
